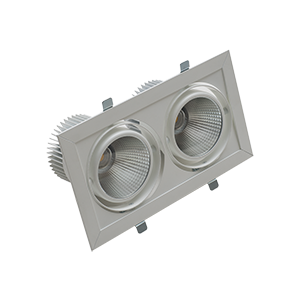

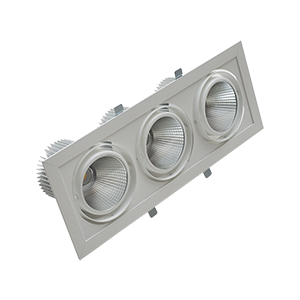

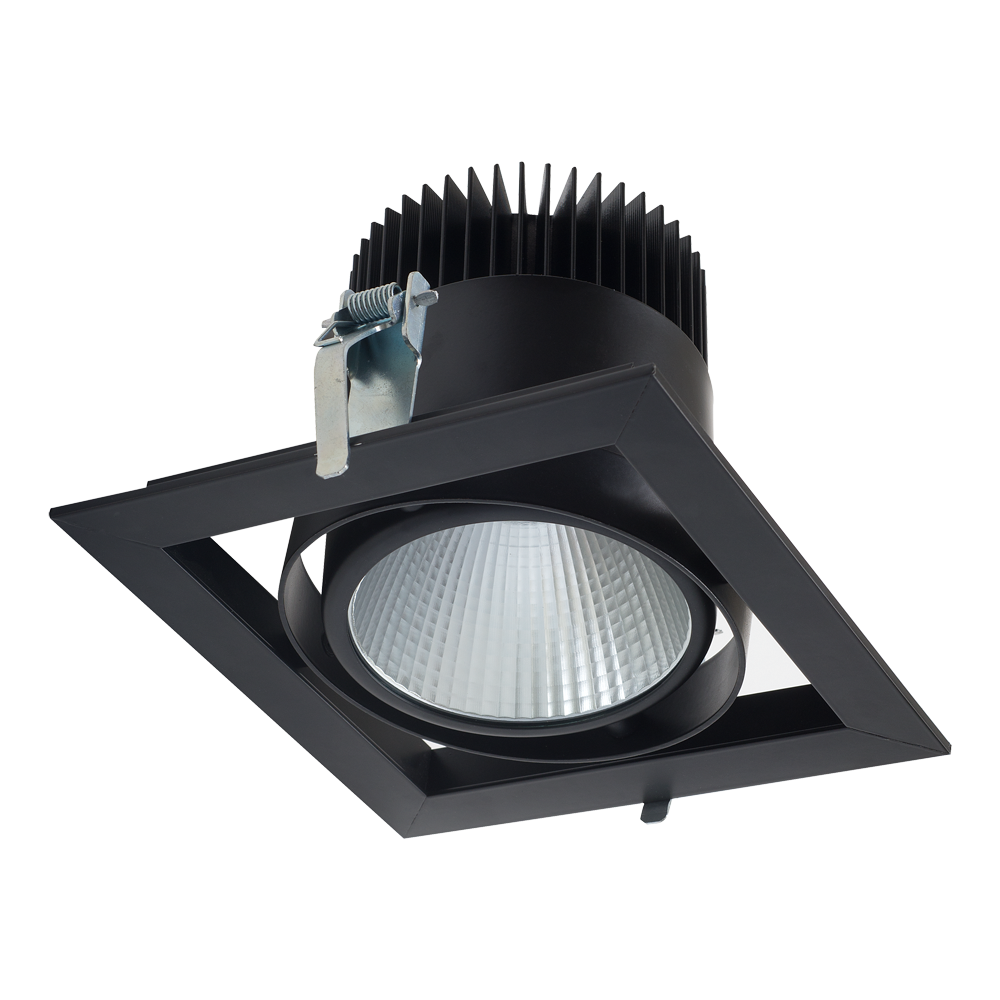

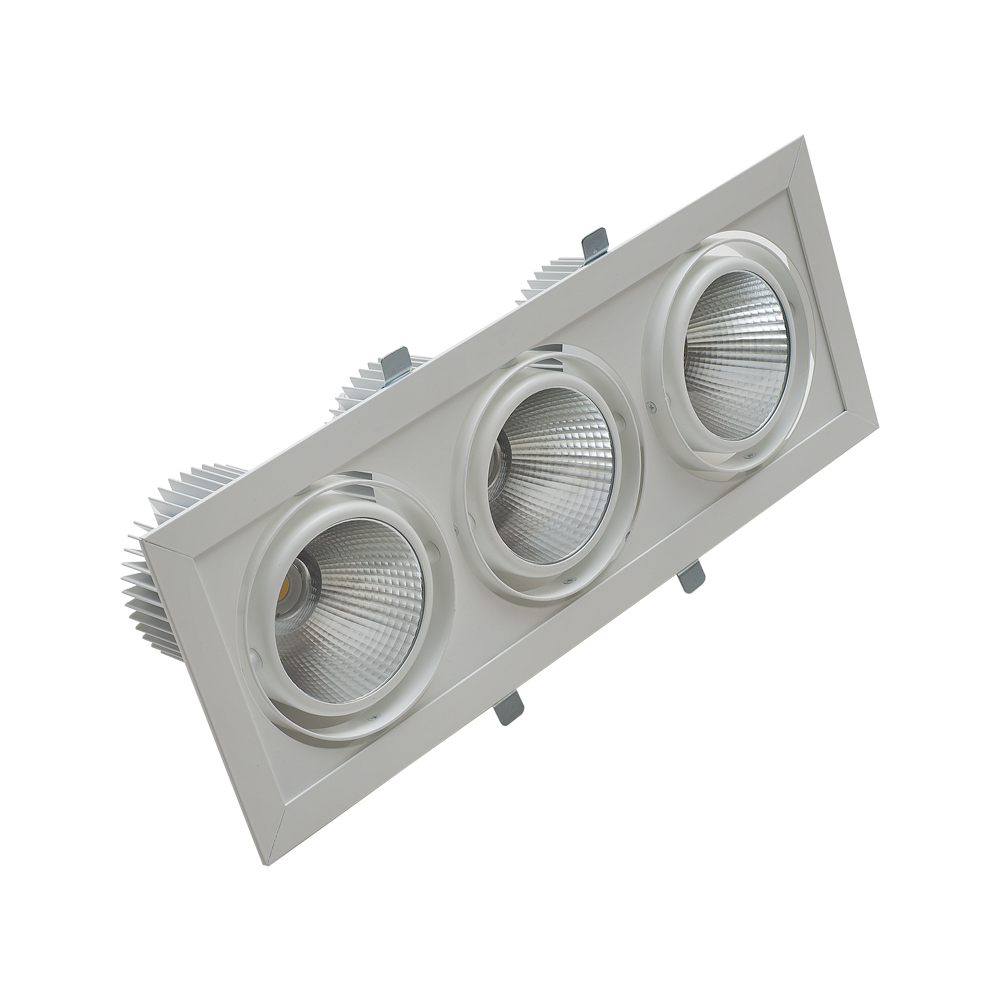

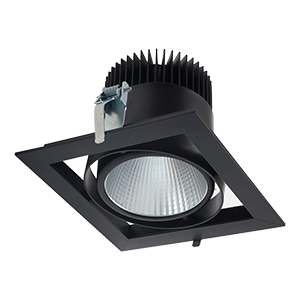

9707 Series Square Adjustable Recessed LED Downlight
Features
• 50.000 hrs L70 performance
• Flicker-free
• 15, 24, 36, 48, 60 beam angle anodized aluminum reflector
• Tempered glass
• Up to %50 energy saving
• 220-240V input voltage
• Active PFC >0.9 and THD < %10 with input filtering circuits
• EN60598 compliant
• 3000K, 4000K, 6500K, CRI >80
• 30 degree tiltable
• Cut-out size 180x180mm, 334x180mm, 493x180mm
Applications
• Accent lighting
Options
• 2700K, 3000K 90CRI, Pure White
• Pure frame version
• Custom paint based on customer RAL color code
• 1hr, 3hrs emergency kit option
• DALI
• 50.000 hrs L70 performance
• Flicker-free
• 15, 24, 36, 48, 60 beam angle anodized aluminum reflector
• Tempered glass
• Up to %50 energy saving
• 220-240V input voltage
• Active PFC >0.9 and THD < %10 with input filtering circuits
• EN60598 compliant
• 3000K, 4000K, 6500K, CRI >80
• 30 degree tiltable
• Cut-out size 180x180mm, 334x180mm, 493x180mm
Applications
• Accent lighting
Options
• 2700K, 3000K 90CRI, Pure White
• Pure frame version
• Custom paint based on customer RAL color code
• 1hr, 3hrs emergency kit option
• DALI
Light Distributions
Dimensions
| Product ID | Power | Light Flux | Dimensions | Weight | ||
|---|---|---|---|---|---|---|
| A | B | C | ||||
| 9707-119 | 20.0W | 1950LM | 197 | 197 | 95 | 1000gr |
| 9707-219 | 38.0W | 3900LM | 351 | 197 | 95 | 2000gr |
| 9707-319 | 60.0W | 5850LM | 510 | 197 | 95 | 3000gr |
| 9707-130 | 31.0W | 3200LM | 197 | 197 | 95 | 1000gr |
| 9707-230 | 62.0W | 6400LM | 351 | 197 | 95 | 2000gr |
| 9707-330 | 93.0W | 9600LM | 510 | 197 | 95 | 3000gr |
| 9707-140 | 36.0W | 3700LM | 197 | 197 | 95 | 1000gr |
