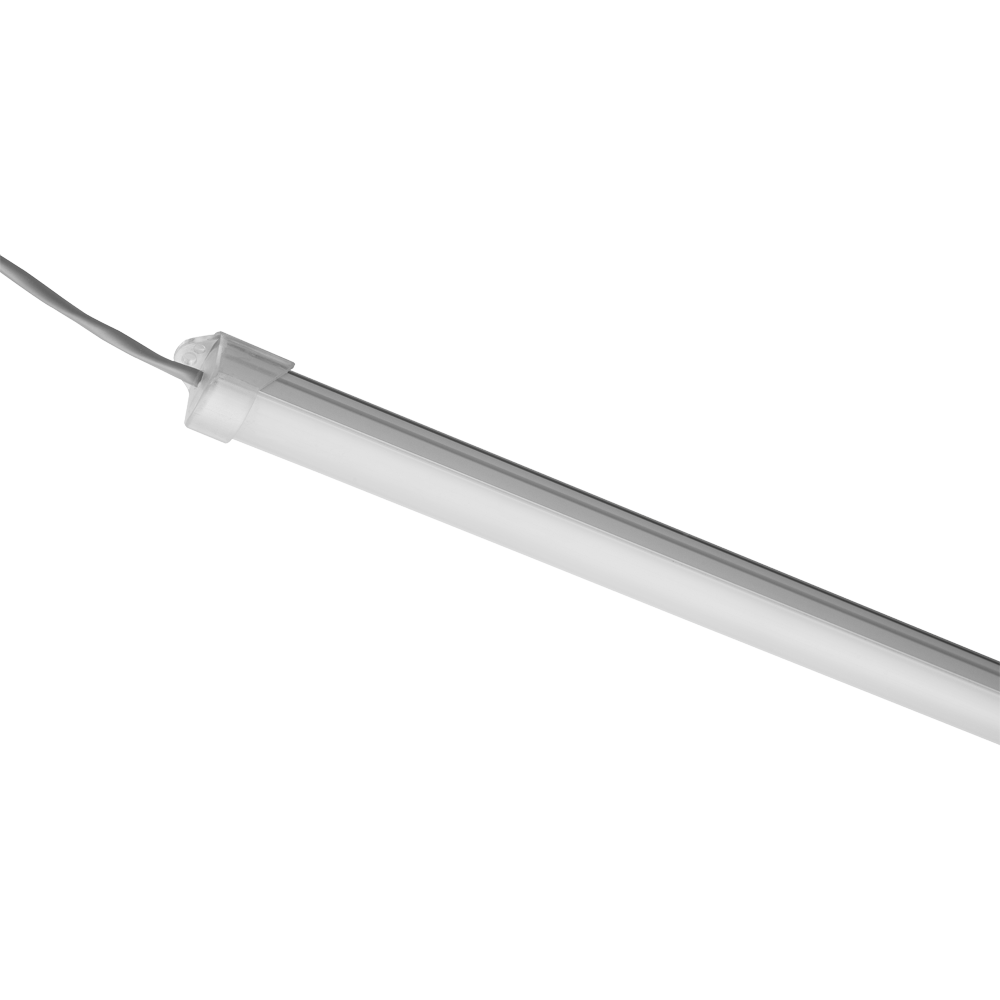

DS-DU LED Bar
Features
• Continuous linear lighting
• %50 energy saving
• Aluminum body
• Impact resistant PC front cover
• EN62031 certified
• 3000K, 4000K, 6500K, CRI >80
• Min 50.000 on/off cycles
• 24V operating voltage, 20-28V input range
Applications
• Undershelf lighting, cove lighting
Options
• 2700K, 5700K, meat color
• Custom lenghts 75mm multiples
• Continuous linear lighting
• %50 energy saving
• Aluminum body
• Impact resistant PC front cover
• EN62031 certified
• 3000K, 4000K, 6500K, CRI >80
• Min 50.000 on/off cycles
• 24V operating voltage, 20-28V input range
Applications
• Undershelf lighting, cove lighting
Options
• 2700K, 5700K, meat color
• Custom lenghts 75mm multiples
Light Distributions
Dimensions
| Product ID | Input Voltage V | Power | Life Hrs | Operating Temp. | Light Flux | Dimensions | Energy Class | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| B | C | Weight | |||||||||
| DS Series | 24V | 16.6W/m | 50.000 | -30C +45C | 1575LM/m | 20 | 20 | 265gr/m |  |
||
| DU Series | 24V | 6.4W/m | 50.000 | -30C +45C | 640LM/m | 20 | 20 | 265gr/m |  |
||
