DN Series 24V T8 LED Tubes
Features
• Up to 2200 lm
• 20-28V input range
• Flicker free
• Up to %50 energy saving
• Aluminum heatsink
• New-gen high efficiency LEDs
• Low maintenance cost
• EN62031 certified
• CRI >80
• Min 50.000 on/off cycles
Applications
• Vehicle lighting
• Machine lighting
Options

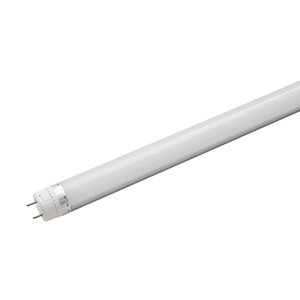

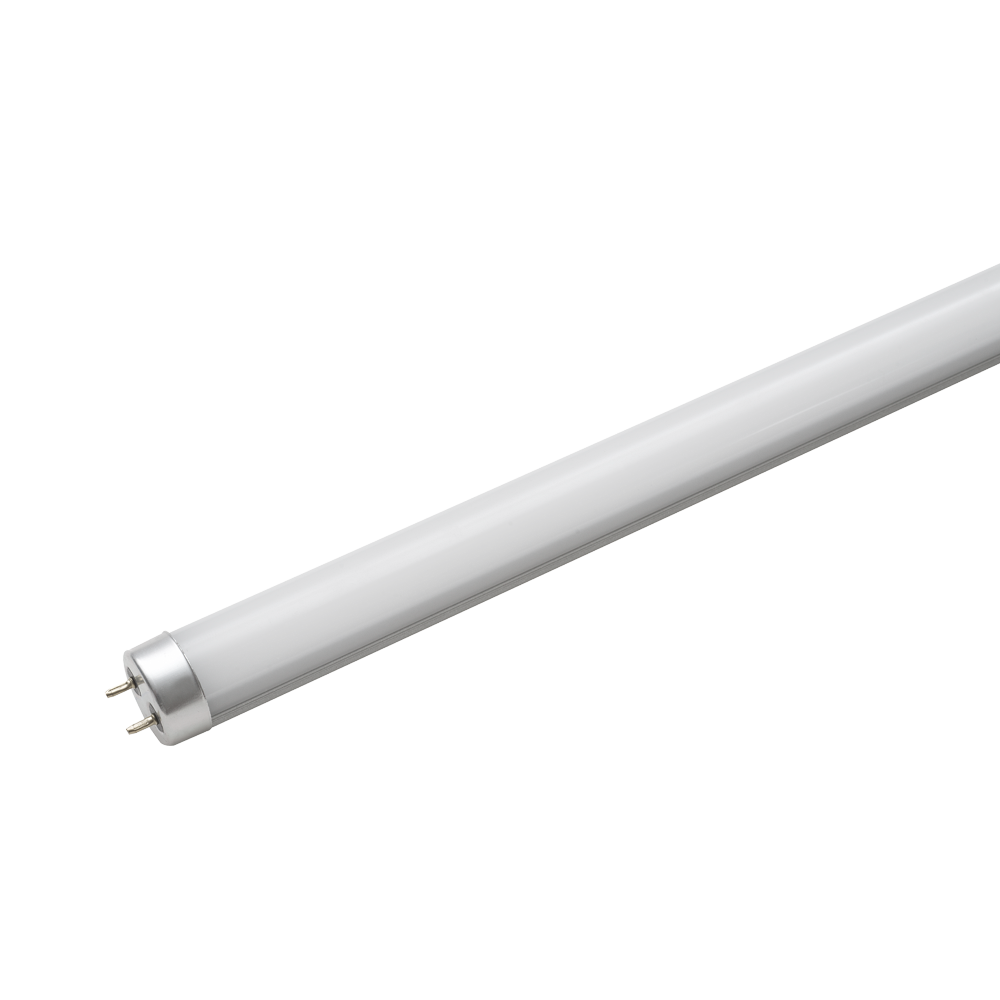

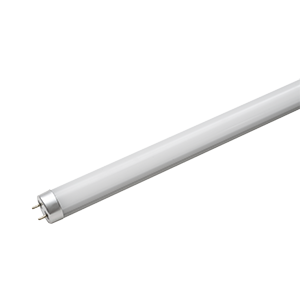

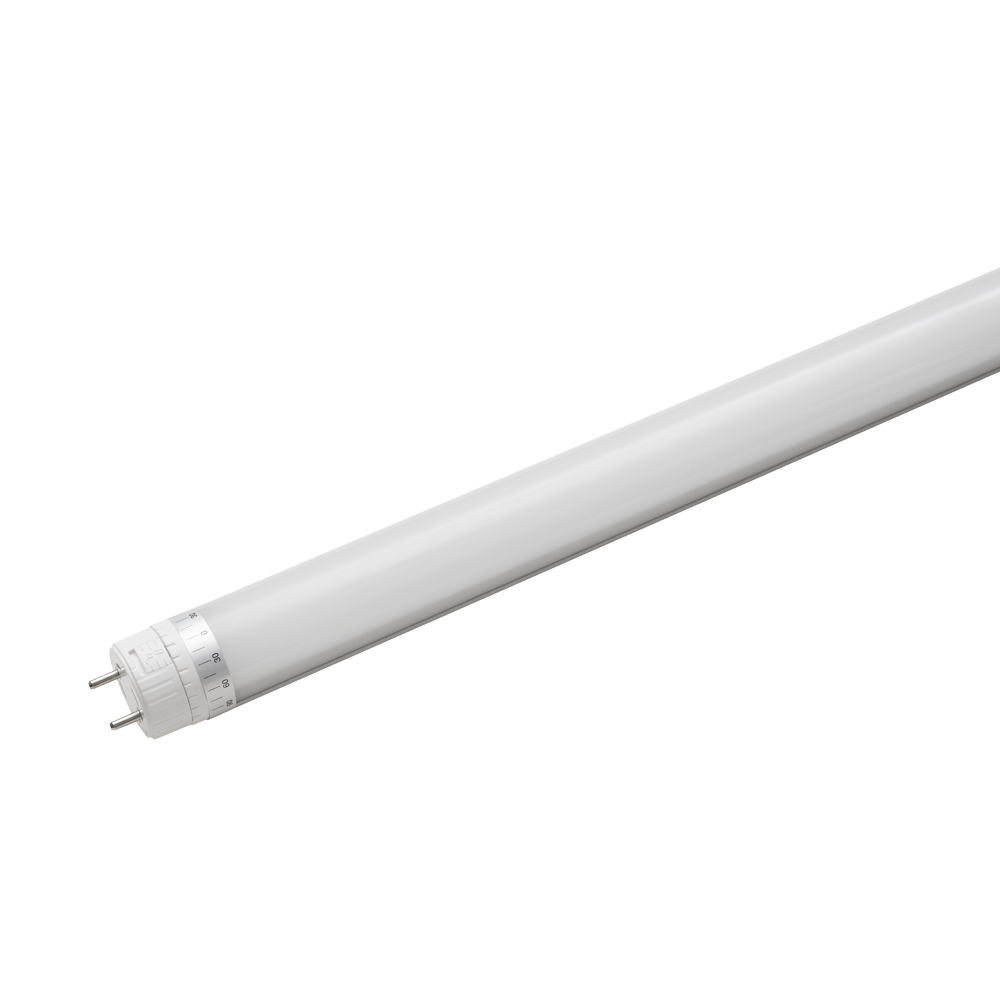

• Metal and Rotating 28mm dia. end cap
• 2700K, 5700K A B
• Up to 2200 lm
• 20-28V input range
• Flicker free
• Up to %50 energy saving
• Aluminum heatsink
• New-gen high efficiency LEDs
• Low maintenance cost
• EN62031 certified
• CRI >80
• Min 50.000 on/off cycles
Applications
• Vehicle lighting
• Machine lighting
Options
• Metal and Rotating 28mm dia. end cap
• 2700K, 5700K A B
Light Distributions
Dimensions
| A | B | C | Weight | |
|---|---|---|---|---|
| DN15 Series | 1499mm | 1513mm | 28mm | 355gr |
| DN12 Series | 1199mm | 1213mm | 28mm | 355gr |
| DN09 Series | 893mm | 907mm | 28mm | 275gr |
| DN06 Series | 589mm | 603mm | 28mm | 200gr |
DN Series 1500mm T8 LED Tubes
| Product ID | Input Voltage V | Power | Energy Class | Life Hrs | Operating Temp. | Light Flux | Front Cover | Color Temp. |
|---|---|---|---|---|---|---|---|---|
| DN15-360-65T | 24V/0.96A | 22.5W |  |
40.000 | -30C +45C | 2300LM | Transparent | 6500K |
| DN15-360-40T | 24V/0.96A | 22.5W | |
40.000 | -30C +45C | 2300LM | Transparent | 4000K |
| DN15-360-30T | 24V/0.96A | 22.5W | |
40.000 | -30C +45C | 2150LM | Transparent | 3000K |
| DN15-360-65F | 24V/0.96A | 22.5W | |
40.000 | -30C +45C | 2100LM | Opaque | 6500K |
| DN15-360-40F | 24V/0.96A | 22.5W | |
40.000 | -30C +45C | 2100LM | Opaque | 4000K |
| DN15-360-30F | 24V/0.96A | 22.5W |  |
40.000 | -30C +45C | 1950LM | Opaque | 3000K |
DN Series 1200mm T8 LED Tubes
| Product ID | Input Voltage V | Power | Energy Class | Life Hrs | Operating Temp. | Light Flux | Front Cover | Color Temp. |
|---|---|---|---|---|---|---|---|---|
| DN12-300-65T | 24V/0.75A | 18.0W |  |
40.000 | -30C +45C | 2000LM | Transparent | 6500K |
| DN12-300-40T | 24V/0.75A | 18.0W | |
40.000 | -30C +45C | 2000LM | Transparent | 4000K |
| DN12-300-30T | 24V/0.75A | 18.0W | |
40.000 | -30C +45C | 1830LM | Transparent | 3000K |
| DN12-300-65F | 24V/0.75A | 18.0W | |
40.000 | -30C +45C | 1800LM | Opaque | 6500K |
| DN12-300-40F | 24V/0.75A | 18.0W | |
40.000 | -30C +45C | 1800LM | Opaque | 4000K |
| DN12-300-30F | 24V/0.75A | 18.0W |  |
40.000 | -30C +45C | 1650LM | Opaque | 3000K |
DN Series 895mm T8 LED Tubes
| Product ID | Input Voltage V | Power | Energy Class | Life Hrs | Operating Temp. | Light Flux | Front Cover | Color Temp. |
|---|---|---|---|---|---|---|---|---|
| DN09-225-65T | 24V/0.57A | 13.5W |  |
40.000 | -30C +45C | 1320LM | Transparent | 6500K |
| DN09-225-40T | 24V/0.57A | 13.5W | |
40.000 | -30C +45C | 1320LM | Transparent | 4000K |
| DN09-225-30T | 24V/0.57A | 13.5W | |
40.000 | -30C +45C | 1210LM | Transparent | 3000K |
| DN09-225-65F | 24V/0.57A | 13.5W | |
40.000 | -30C +45C | 1200LM | Opaque | 6500K |
| DN09-225-40F | 24V/0.57A | 13.5W | |
40.000 | -30C +45C | 1200LM | Opaque | 4000K |
| DN09-225-30F | 24V/0.57A | 13.5W |  |
40.000 | -30C +45C | 1100LM | Opaque | 3000K |
DN Series 590mm T8 LED Tubes
| Product ID | Input Voltage V | Power | Energy Class | Life Hrs | Operating Temp. | Light Flux | Front Cover | Color Temp. |
|---|---|---|---|---|---|---|---|---|
| DN06-150-65T | 24V/0.38A | 9.0W |  |
40.000 | -30C +45C | 1000LM | Transparent | 6500K |
| DN06-150-40T | 24V/0.38A | 9.0W | |
40.000 | -30C +45C | 1000LM | Transparent | 4000K |
| DN06-150-30T | 24V/0.38A | 9.0W | |
40.000 | -30C +45C | 915LM | Transparent | 3000K |
| DN06-150-65F | 24V/0.38A | 9.0W | |
40.000 | -30C +45C | 900LM | Opaque | 6500K |
| DN06-150-40F | 24V/0.38A | 9.0W | |
40.000 | >-30C +45C | 900LM | Opaque | 4000K |
| DN06-150-30F | 24V/0.38A | 9.0W |  |
40.000 | -30C +45C | 825LM | Opaque | 3000K |
