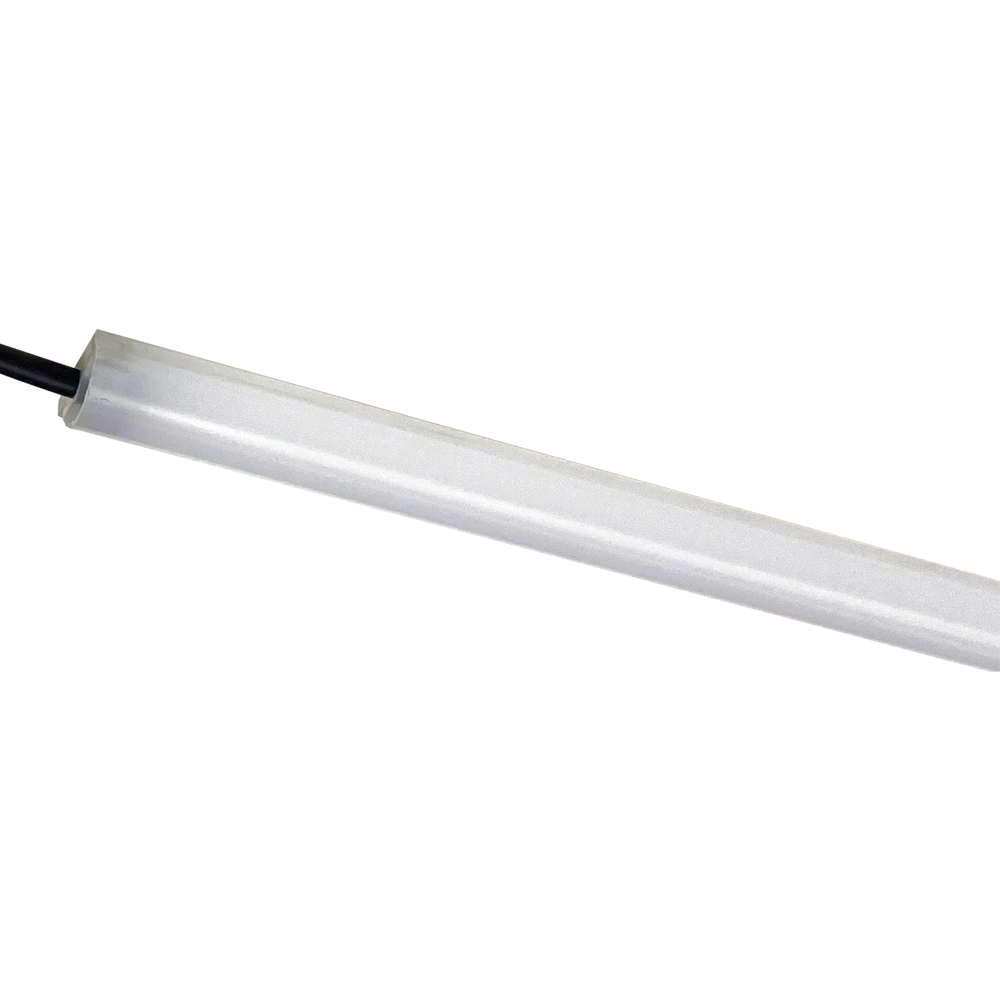

DK-DB LED Bar
Features
• Continuous linear lighting
• %60 energy saving
• Impact resistant PC body
• EN62031 certified
• 3000K, 4000K, 6500K, CRI >80
• Min 50.000 on/off cycles
• 24V operating voltage
Applications
• Undershelf lighting, cove lighting
Options
• 2700K, 5700K, meat color
• Custom lenghts 75mm multiples
• Continuous linear lighting
• %60 energy saving
• Impact resistant PC body
• EN62031 certified
• 3000K, 4000K, 6500K, CRI >80
• Min 50.000 on/off cycles
• 24V operating voltage
Applications
• Undershelf lighting, cove lighting
Options
• 2700K, 5700K, meat color
• Custom lenghts 75mm multiples
Light Distributions

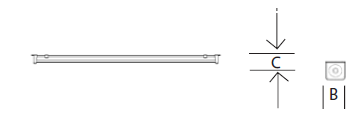

Dimensions
| Product ID | Input Voltage V | Power | Life Hrs | Operating Temp. | Light Flux | Dimensions | Energy Class | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| B | C | Weight | |||||||||
| DK Series | 24V | 10.0W/m | 50.000 | -30C +45C | 1280LM/m | 13.3 | 9.2 | 115gr/m |  |
||
| DB Series | 24V | 5.0W/m | 50.000 | -30C +45C | 640LM/m | 13.3 | 9.2 | 115gr/m |  |
||
