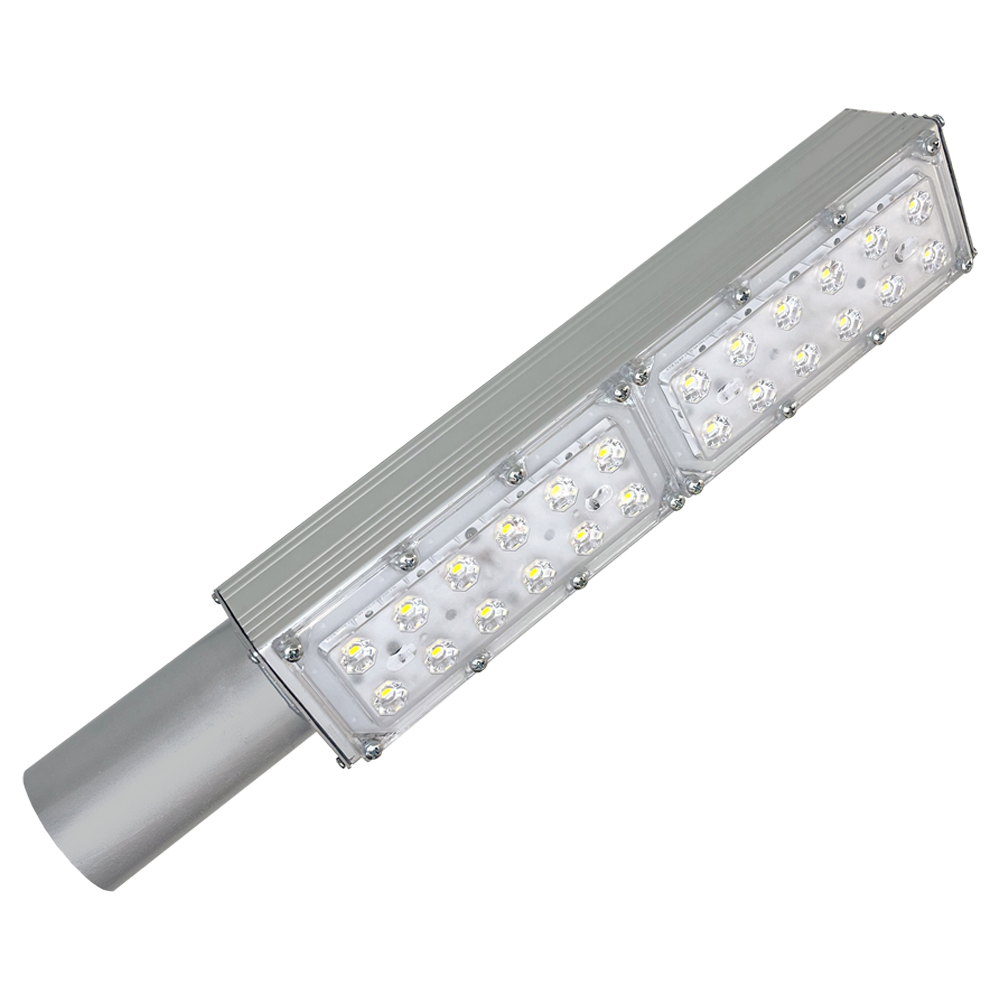

5011 Series LED Street Luminaire
Features
• Shock proof UV protected PC Lens
• IP66 ingress protection
• 50.000 hrs L70 performance
• Passive cooling with aluminum body
• Up to %50 energy saving
• 220-240V input voltage, optional 6kV surge withstand
• Active PFC >0.95 and THD < %10 with input filtering circuits
• EN60598 compliant
• 3000K, 4000K, 6500K, CRI >80
• -20C +45C operating temp.
• Suitable for 45-49mm diameter console poles
Applications
• Facade lighting, area lighting
Options
• 2700K, 5700K
• 12, 30, 60, 75 degree beam angles
• Shock proof UV protected PC Lens
• IP66 ingress protection
• 50.000 hrs L70 performance
• Passive cooling with aluminum body
• Up to %50 energy saving
• 220-240V input voltage, optional 6kV surge withstand
• Active PFC >0.95 and THD < %10 with input filtering circuits
• EN60598 compliant
• 3000K, 4000K, 6500K, CRI >80
• -20C +45C operating temp.
• Suitable for 45-49mm diameter console poles
Applications
• Facade lighting, area lighting
Options
• 2700K, 5700K
• 12, 30, 60, 75 degree beam angles
| Product ID | Power | Light Flux | Weight | Length |
|---|---|---|---|---|
| 5011-026 | 26.0W | 4020LM | 950gr | 296mm |
| 5011-052 | 52.0W | 8040LM | 1250gr | 470mm |
