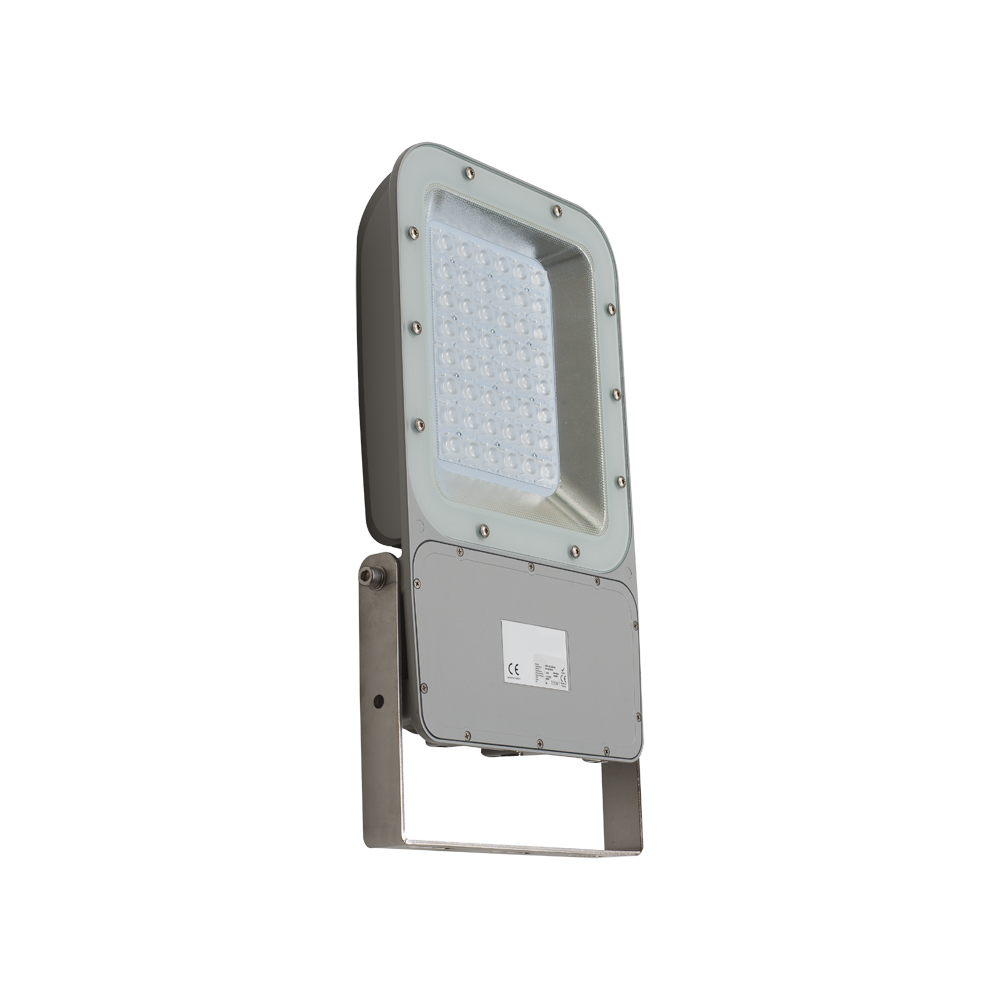

5004 Series LED Floodlight
Features
• Shock proof tempered glass
• IP66 ingress protection
• 50.000 hrs L70 performance
• Passive cooling with aluminum injection body
• Up to %50 energy saving
• 220-240V input voltage, 6kV surge withstand
• Active PFC >0.95 and THD < %10 with input fi ltering circuits
• EN60598 certified
• 3000K, 4000K, 6000K, CRI >80
• -30C +50C operating temp.
Applications
• Facade lighting, area lighting
Options
• 2700K, 5700K
• Shock proof tempered glass
• IP66 ingress protection
• 50.000 hrs L70 performance
• Passive cooling with aluminum injection body
• Up to %50 energy saving
• 220-240V input voltage, 6kV surge withstand
• Active PFC >0.95 and THD < %10 with input fi ltering circuits
• EN60598 certified
• 3000K, 4000K, 6000K, CRI >80
• -30C +50C operating temp.
Applications
• Facade lighting, area lighting
Options
• 2700K, 5700K

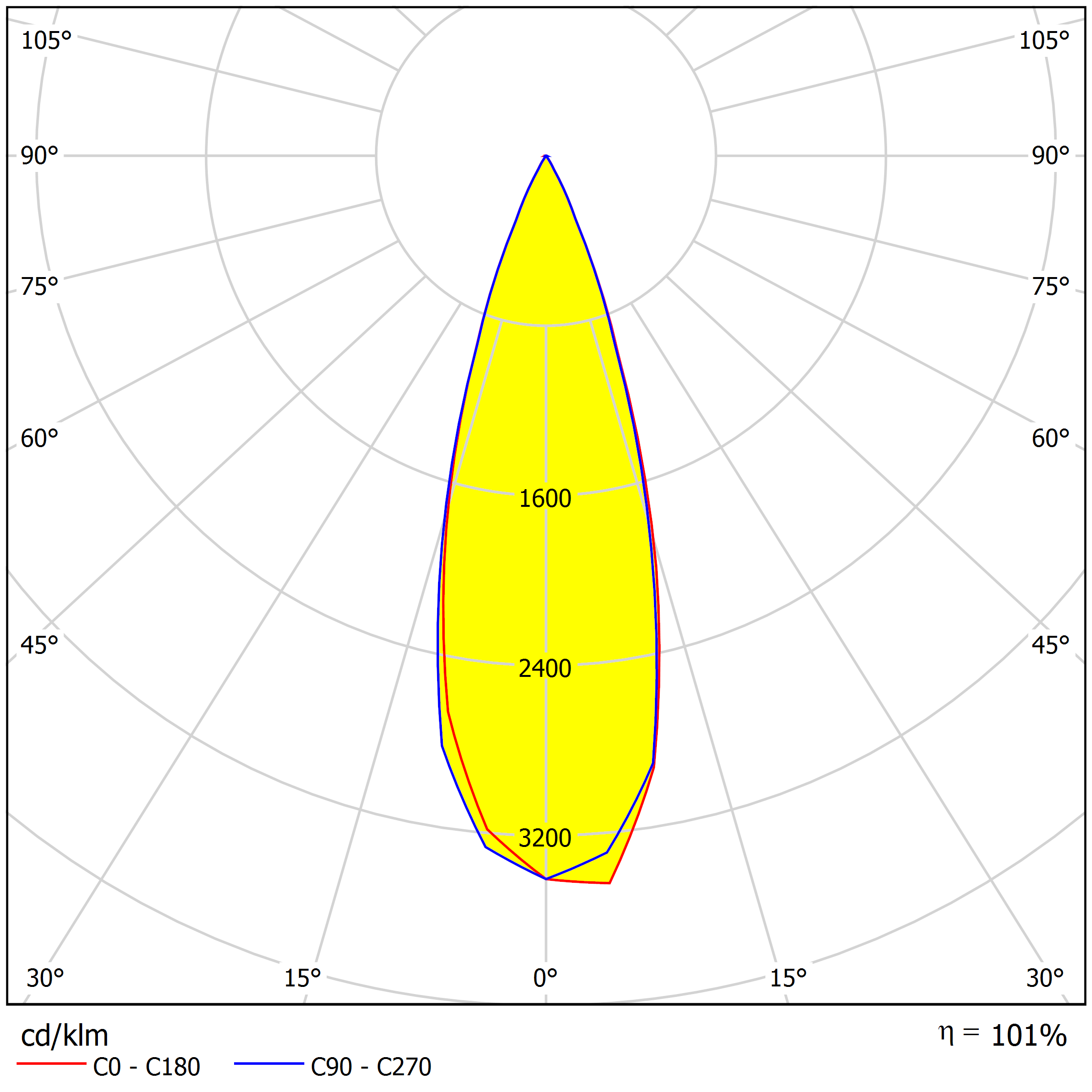

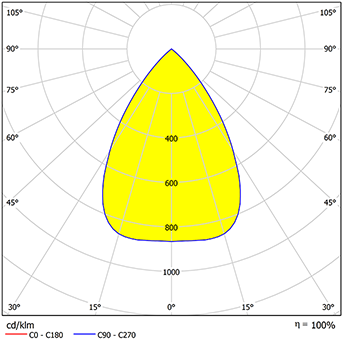

Light Distributions

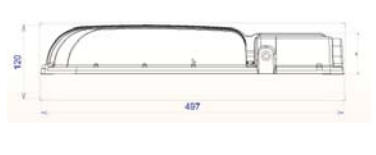

Dimensions
| Product ID | Power | Light Flux | Weight | Light Distribution |
|---|---|---|---|---|
| 5004-220-XXF-060 | 220W | 27000LM | 9500gr | 60 degree |
| 5004-220-XXF-030 | 220W | 27000LM | 9500gr | 30 degree |
| 5004-220-XXT | 220W | 30000LM | 9500gr | 120 degree |
| 5004-440-XXF-060 | 440W | 54000LM | 19000gr | 60 degree |
| 5004-440-XXF-030 | 440W | 54000LM | 19000gr | 30 degree |
| 5004-440-XXT | 440W | 60000LM | 19000gr | 120 degree |
