5003 Series LED Floodlight
Features
• Shock proof tempered glass
• IP66 ingress protection
• 50.000 hrs L70 performance
• Passive cooling with aluminum injection body
• Up to %50 energy saving
• 220-240V input voltage, 4kV surge withstand
• Active PFC >0.95 and THD < %10 with input filtering circuits
• EN60598 certified
• 3000K, 4000K, 6000K, CRI >80
• -30C +50C operating temp.
Applications
• Facade lighting, area lighting
Options
• 2700K, 5700K
• Shock proof tempered glass
• IP66 ingress protection
• 50.000 hrs L70 performance
• Passive cooling with aluminum injection body
• Up to %50 energy saving
• 220-240V input voltage, 4kV surge withstand
• Active PFC >0.95 and THD < %10 with input filtering circuits
• EN60598 certified
• 3000K, 4000K, 6000K, CRI >80
• -30C +50C operating temp.
Applications
• Facade lighting, area lighting
Options
• 2700K, 5700K
Light Distributions

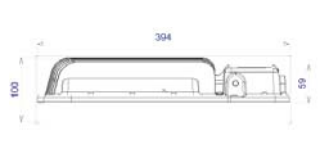

Dimensions
| Product ID | Power | Light Flux | Weight |
|---|---|---|---|
| 5003-145 | 45.0W | 5200LM | 4750gr |
| 5003-160 | 60.0W | 6500LM | 4750gr |
| 5003-175 | 70.0W | 8000LM | 4750gr |
| 5003-100 | 100.0W | 13000LM | 4750gr |
| 5003-130 | 130.0W | 16500LM | 4750gr |
