5001 Series LED Street Luminaire
Features
• Shock proof tempered glass
• IP66 ingress protection
• 50.000 hrs L70 performance
• Passive cooling with aluminum injection body
• Up to %50 energy saving
• 220-240V input voltage, 6kV surge withstand
• Active PFC >0.95 and THD < %10 with input filtering circuits
• EN60598 compliant
• 3000K, 4000K, 6000K, CRI >70
• -30C +50C operating temp.
• Suitable for 46-55mm diameter console poles
Applications
• Outdoor lighting, street lighting
Options
• 2700K, 5700K, >80 CRI
• Shock proof tempered glass
• IP66 ingress protection
• 50.000 hrs L70 performance
• Passive cooling with aluminum injection body
• Up to %50 energy saving
• 220-240V input voltage, 6kV surge withstand
• Active PFC >0.95 and THD < %10 with input filtering circuits
• EN60598 compliant
• 3000K, 4000K, 6000K, CRI >70
• -30C +50C operating temp.
• Suitable for 46-55mm diameter console poles
Applications
• Outdoor lighting, street lighting
Options
• 2700K, 5700K, >80 CRI

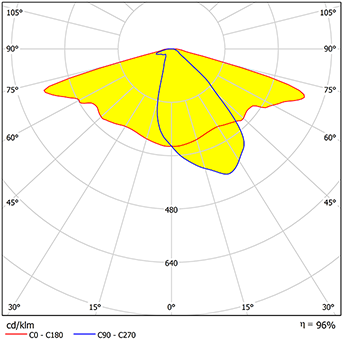

Light Distributions
Dimensions
| Product ID | Power | Light Flux | Weight |
|---|---|---|---|
| 5001-145 | 45.0W | 5200LM | 5420gr |
| 5001-160 | 60.0W | 6700LM | 5420gr |
| 5001-175 | 70.0W | 8200LM | 5420gr |
| 5001-100 | 100.0W | 13000LM | 5420gr |
| 5001-130 | 130.0W | 16500LM | 5420gr |
