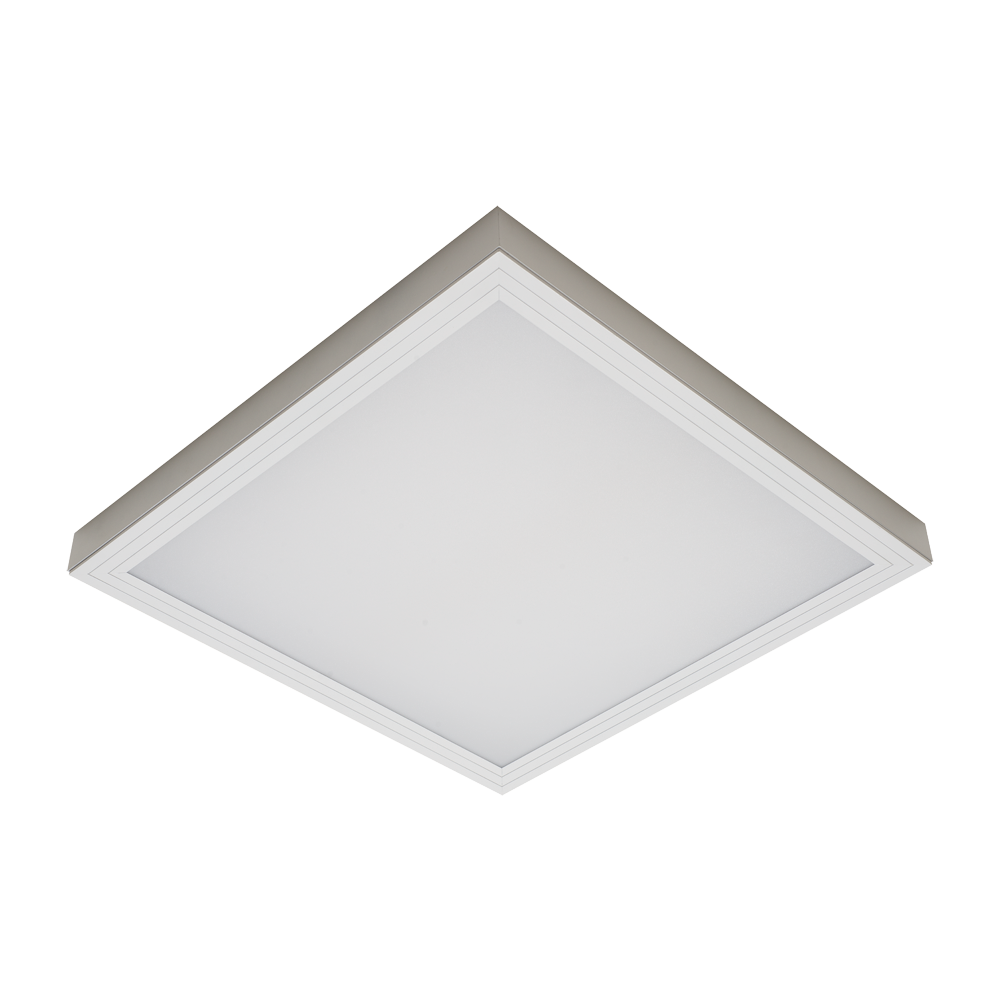

Recessed Glare Controlled LED Panel+Surface Mount Frame
Features
• 3600 Series recessed luminaire+ surface mount frame kit
• Double layer optics UGR<16
• 50.000 hrs L70 performance
• Flicker-free
• Steel sheet body high quality matte finish
• Up to %50 energy saving
• Active PFC >0.9 and THD < %10 with input fi ltering circuits
• EN60598 certified
• 3000K, 4000K, 6500K, CRI >80
• Min 50.000 on/off cycles
• 220-240V input voltage
Applications
• Offices, supermarkets, factories schools
Options
• 2700K, 5700K
• Custom paint based on customer RAL color code
• 1hr, 3hrs emergency kit option
• DALI
• 3600 Series recessed luminaire+ surface mount frame kit
• Double layer optics UGR<16
• 50.000 hrs L70 performance
• Flicker-free
• Steel sheet body high quality matte finish
• Up to %50 energy saving
• Active PFC >0.9 and THD < %10 with input fi ltering circuits
• EN60598 certified
• 3000K, 4000K, 6500K, CRI >80
• Min 50.000 on/off cycles
• 220-240V input voltage
Applications
• Offices, supermarkets, factories schools
Options
• 2700K, 5700K
• Custom paint based on customer RAL color code
• 1hr, 3hrs emergency kit option
• DALI

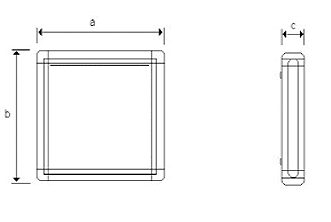

| Product ID | Power | Light Flux | Dimensions | Weight | ||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||
| 3600-406-SM | 29.0W | 3300LM | 630 | 630 | 70 | 4000gr | ||
| 3600-409-SM | 36.0W | 4000LM | 630 | 630 | 70 | 4000gr | ||
