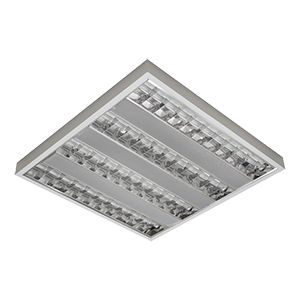

Surface Mounted Double Parabolic T5 LED Luminaire
Features
• UGR < 16, double parabolic anodized reflector
• Easy maintenance with replaceable Odsel T5 LED Tubes
• 50.000 hrs L70 performance
• Flicker-free
• Steel sheet body, high quality matte finish
• Up to %30 energy saving
• Active PFC >0.9 and THD < %10 with input filtering circuits
• EN60598 compliant
• 3000K, 4000K, 6500K, CRI >80
• 220-240V input voltage
Applications
• Offices, supermarkets, factories schools
Options
• 2700K, 5700K
• Custom paint based on customer RAL color code
• 1hr, 3hrs emergency kit option
• DALI
• UGR < 16, double parabolic anodized reflector
• Easy maintenance with replaceable Odsel T5 LED Tubes
• 50.000 hrs L70 performance
• Flicker-free
• Steel sheet body, high quality matte finish
• Up to %30 energy saving
• Active PFC >0.9 and THD < %10 with input filtering circuits
• EN60598 compliant
• 3000K, 4000K, 6500K, CRI >80
• 220-240V input voltage
Applications
• Offices, supermarkets, factories schools
Options
• 2700K, 5700K
• Custom paint based on customer RAL color code
• 1hr, 3hrs emergency kit option
• DALI

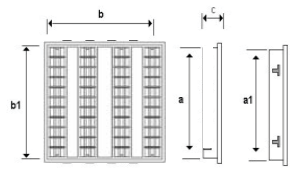

| Product ID | Power | Light Flux | Dimensions | |||
|---|---|---|---|---|---|---|
| A | B | C | Weight | |||
| 3410-214 | 20.0W | 1600LM | 600 | 310 | 55 | 2000gr |
| 3410-414 | 40.0W | 3200LM | 600 | 600 | 55 | 3600gr |
| 3410-228 | 40.0W | 3200LM | 1205 | 310 | 55 | 3600gr |
| 3410-428 | 80.0W | 6400LM | 1205 | 600 | 55 | 7500gr |
