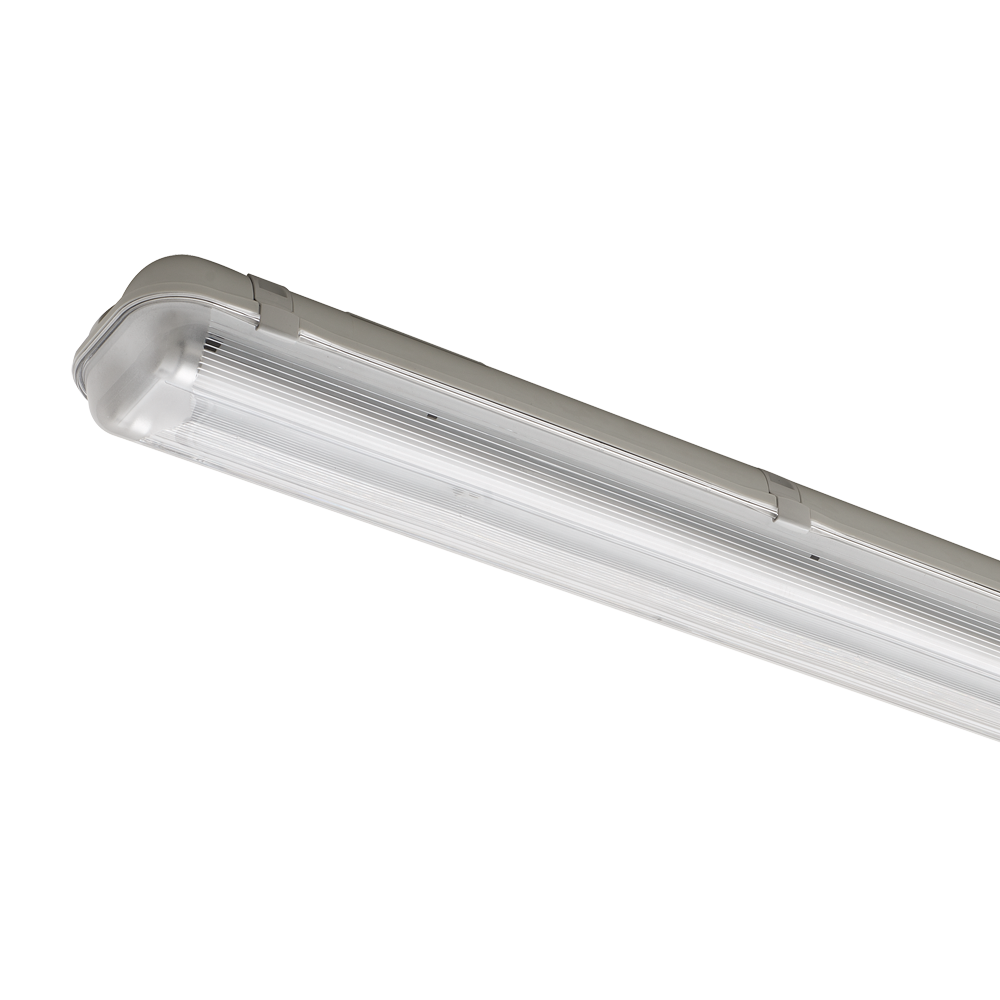

IP65 Macro Waterproof LED Luminaire

Features
• Easy maintenance with replacable Odsel T8 Tubes
• PC diffuser and PC body
• 0.5mm2 halogen free cables
• %50 energy saving
• Active PFC >0.9
• EN60598 certified
• 3000K, 4000K, 6500K, CRI >80
• Min 50.000 on/off cycles
Applications
• Factories, warehouses, carparks, cold storages,low bay
Options
• 2700K, 5700K
• 1 hr, 3 hrs emergency kit option
• DALI

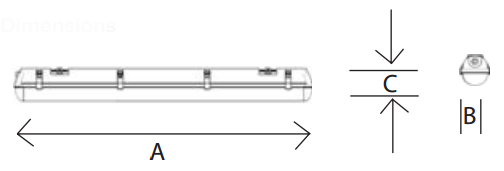

Product ID	Input Voltage V	Power	PFC	Life Hrs	Operating Temp.	Light Flux	Dimensions
							A	B	C	Weight
2005-118-EC	100-240V	8.5W	0.90	40.000	-30C +45C	1050LM	660	86	90	900gr
2005-218-EC	100-240V	17.0W	0.90	40.000	-30C +45C	2000LM	660	106	90	1600gr
2005-136-EC	100-240V	17.0W	0.95	40.000	-30C +45C	2100LM	1270	86	90	1800gr
2005-236-EC	100-240V	34.0W	0.95	40.000	-30C +45C	4000LM	1270	106	90	2500gr
2005-158-HL	100-240V	26.0W	0.95	40.000	-30C +45C	3300LM	1570	86	90	2000gr
2005-258-HL	100-240V	52.0W	0.95	40.000	-30C +45C	6200LM	1570	106	90	3200gr
