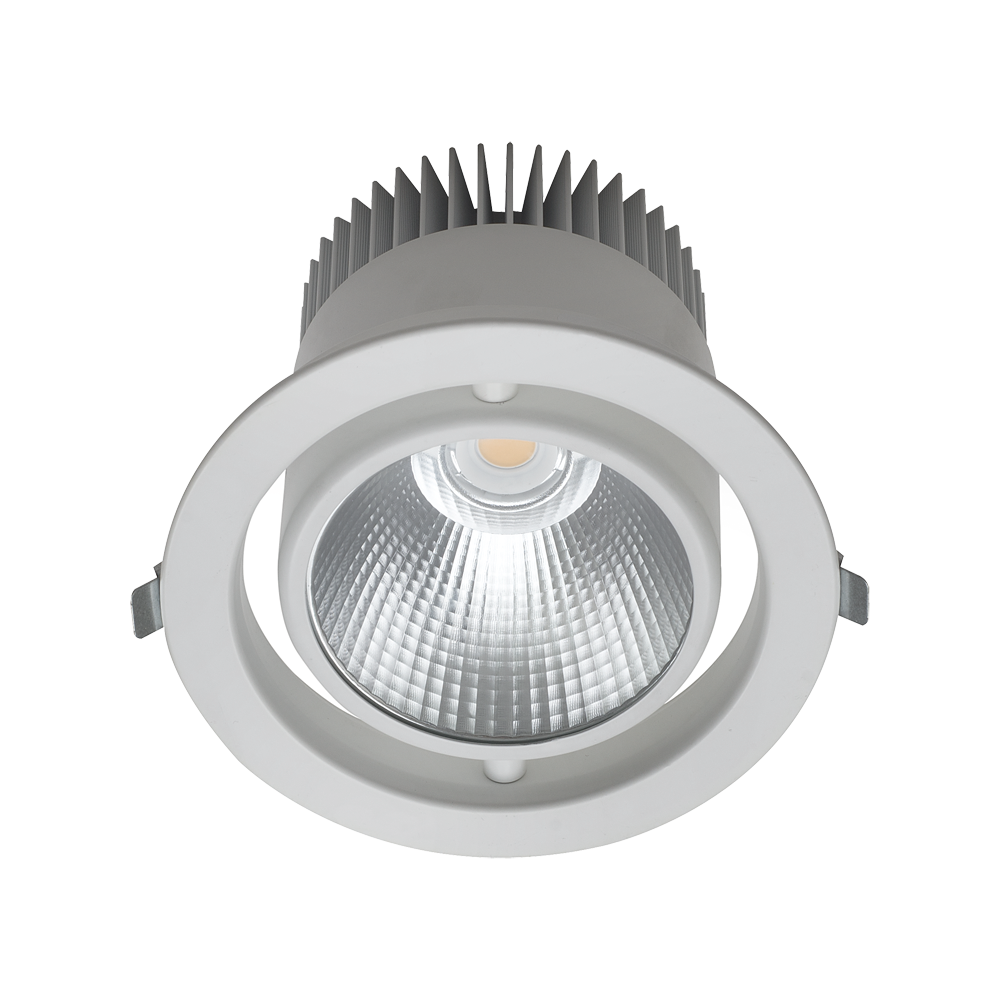

9102 Series Adjustable Recessed LED Downlight
Features
• 50.000 hrs L70 performance
• Flicker-free
• 15, 24, 36, 48, 60 beam angle anodized aluminum reflector
• Tempered glass
• Up to %50 energy saving
• 220-240V input voltage
• Active PFC >0.9 and THD < %10 with input filtering circuits
• EN60598 compliant
• 3000K, 4000K, 6500K, CRI >80
• Cut-out diameter Ø158mm
• 30 degree tiltable
Applications
• Accent lighting
Options
• 2700K, 3000K 90CRI, Pure White
• Custom paint based on customer RAL color code
• 1hr, 3hrs emergency kit option
• DALI
• 50.000 hrs L70 performance
• Flicker-free
• 15, 24, 36, 48, 60 beam angle anodized aluminum reflector
• Tempered glass
• Up to %50 energy saving
• 220-240V input voltage
• Active PFC >0.9 and THD < %10 with input filtering circuits
• EN60598 compliant
• 3000K, 4000K, 6500K, CRI >80
• Cut-out diameter Ø158mm
• 30 degree tiltable
Applications
• Accent lighting
Options
• 2700K, 3000K 90CRI, Pure White
• Custom paint based on customer RAL color code
• 1hr, 3hrs emergency kit option
• DALI
Light Distributions
Dimensions
| Product ID | Power | Light Flux | Weight |
|---|---|---|---|
| 9102-119 | 20.0W | 1950LM | 750gr |
| 9102-130 | 31.0W | 3200LM | 750gr |
| 9102-140 | 36.0W | 3700LM | 850gr |
