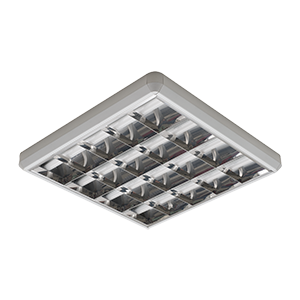

Surface Mounted Double Parabolic T8 LED Luminaire
Features
• UGR < 19, double parabolic anodized reflector
• Easy maintenance with replaceable Odsel T8 LED Tubes
• 50.000 hrs L70 performance
• Steel sheet body, high quality matte finish
• Up to %50 energy saving
• Active PFC >0.9 and THD < %10 with input filtering circuits
• EN60598 certified
• 3000K, 4000K, 6500K, CRI >80
• 220-240V input voltage
Applications
• Offices, supermarkets, factories schools
Options
• 2700K, 5700K
• Custom paint based on customer RAL color code
• 1hr, 3hrs emergency kit option • DALI
• UGR < 19, double parabolic anodized reflector
• Easy maintenance with replaceable Odsel T8 LED Tubes
• 50.000 hrs L70 performance
• Steel sheet body, high quality matte finish
• Up to %50 energy saving
• Active PFC >0.9 and THD < %10 with input filtering circuits
• EN60598 certified
• 3000K, 4000K, 6500K, CRI >80
• 220-240V input voltage
Applications
• Offices, supermarkets, factories schools
Options
• 2700K, 5700K
• Custom paint based on customer RAL color code
• 1hr, 3hrs emergency kit option • DALI
| Product ID | Power | Light Flux | Dimensions | |||
|---|---|---|---|---|---|---|
| A | B | C | Weight | |||
| 3350-218 | 19.0W | 1600LM | 635 | 335 | 55 | 1950gr |
| 3350-418 | 38.0W | 3200LM | 635 | 635 | 55 | 4000gr |
| 3350-236 | 32.0W | 3000LM | 335 | 335 | 55 | 4000gr |
| 3350-436 | 64.0W | 6000LM | 635 | 635 | 55 | 7500gr |
