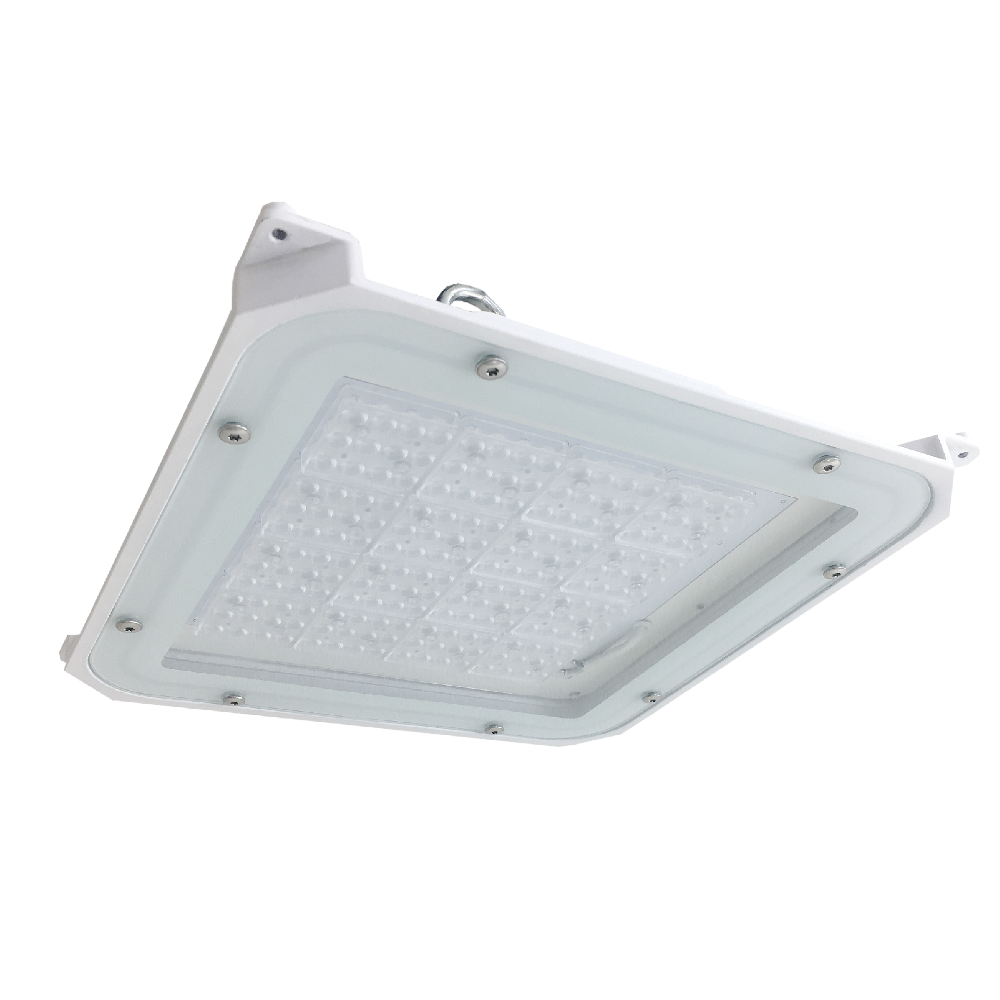

Macro Suspended High Bay LED Luminaire
Features
• Installation height up to 15m
• Suspended
• IP66
• Aluminum heatsink
• Tempered glass
• PMMA lens
• 4kV surge protection
• %65 energy saving
• Active PFC >0.9 ve THD < %10
• EN60598 compliant
• 180-295V input voltage range
• 3000K, 4000K, 6500K, CRI >80
• Min 50.000 on/off cycles
Applications
• High bay, storage racks, exhibition halls, sport halls
Options
• 1-10V dim

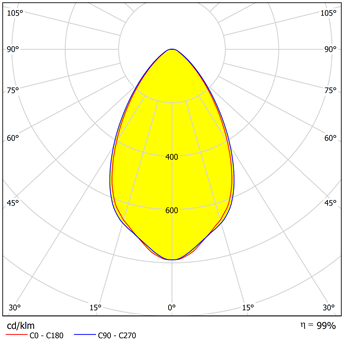

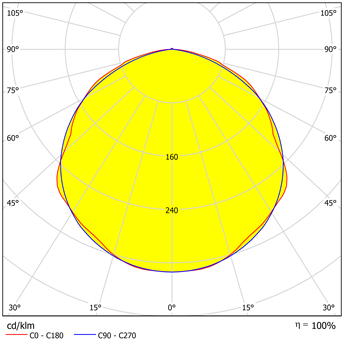

Light Distributions
Dimensions
Product ID Light Angle Power PFC Life Hrs Operating Temp. Light Flux Weight
2507-130-045 45 130.0W 0.95 60.000 -30C +45C 14000LM 6500gr
2507-130-060 60 130.0W 0.95 60.000 -30C +45C 14500LM 6500gr
2507-130-090 90 130.0W 0.95 60.000 -30C +45C 15000LM 6500gr
2507-130-120 120 130.0W 0.95 60.000 -30C +45C 16000LM 6500gr
