Canopy LED Luminaire
Features
• UGR<21(XXK version)
• IP66
• Aluminum injection body
• Advanced glare controlled PMMA lens(XXK) XXF version opaque
• %65 energy saving
• Active PFC >0.9 ve THD < %10
• EN60598 compliant
• 220-240V input voltage range
• 3000K, 4000K, 6500K, CRI >80
• Min 50.000 on/off cycles
Applications
• Fuel stations, High bay
Options
• 1-10V dim
• Recessed installation apparatus
frame length 400x400mm
frame cut-out length 348x348mm

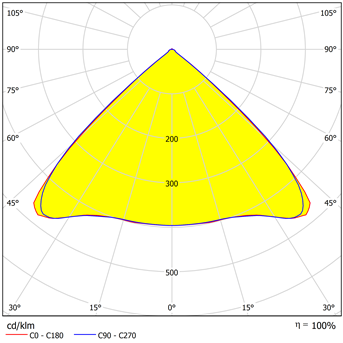

Light Distributions
Dimensions
Product ID Power PFC Life Hrs Operating Temp. Light Flux Weight
2503-060-XXF 60.0W 0.95 60.000 -30C +45C 6500LM 6180gr
2503-075-XXF 75.0W 0.95 60.000 -30C +45C 7700LM 6180gr
2503-090-XXF 90.0W 0.95 60.000 -30C +45C 11000LM 6180gr
2503-060-XXK 60.0W 0.95 60.000 -30C +45C 6500LM 6180gr
2503-075-XXK 75.0W 0.95 60.000 -30C +45C 7700LM 6180gr
2503-090-XXK 90.0W 0.95 60.000 -30C +45C 11000LM 6180gr


ODSEL

ODSEL Elektronik San. Tic. A.S
