Midi High Bay LED Luminaire
Features
• Installation height up to 15m
• Up to 140lm/W
• Flicker-free
• Advanced glare controlled PMMA lens
• %50 energy saving
• Active PFC >0.9 ve THD < %10
• Aluminum body
• H05SSF input cable
• EN60598 compliant
• 220-240V input voltage range
• 3000K, 4000K, 6500K, CRI >80
• Min 50.000 on/off cycles
Applications
• High bay, storage racks, exhibition halls
Options
• 1 hr, 3 hrs emergency kit option
• DALI
• Custom cable length, connector
• 5000K • 90 CRI

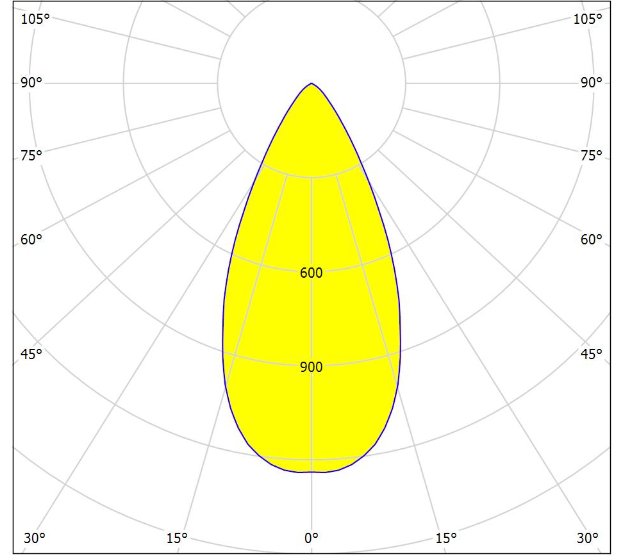

Light Distributions
Dimensions
Product ID Power PFC Life Hrs Operating Temp. Light Flux Dimensions
A B C Weight
2401-147-UGR 47.0W 0.95 60.000 -30C +45C 5850LM 1030 56 107 2165gr
2401-164-UGR 64.0W 0.95 60.000 -30C +45C 7200LM 1030 56 107 2165gr
2401-147-088 47.0W 0.95 60.000 -30C +45C 5850LM 1030 56 107 2165gr
2401-164-088 64.0W 0.95 60.000 -30C +45C 7200LM 1030 56 107 2165gr
2401-168-045 70.0W 0.95 60.000 -30C +45C 9800LM 1030 56 107 2165gr
2401-198-045 102.0W 0.95 60.000 -30C +45C 14700LM 1530 56 107 3200gr
2401-168-060 70.0W 0.95 60.000 -30C +45C 9800LM 1030 56 107 2165gr
2401-198-060 102.0W 0.95 60.000 -30C +45C 14700LM 1530 56 107 3200gr
2401-168-088 70.0W 0.95 60.000 -30C +45C 9800LM 1030 56 107 2165gr
2401-198-088 102.0W 0.95 60.000 -30C +45C 14700LM 1530 56 107 3200gr


ODSEL

ODSEL Elektronik San. Tic. A.S
