IP67 Midi Waterproof LED Luminaire
Features
• Up to 140lm/W efficiency
• Industrial sleek waterproof luminaire
• IP67
• Up to 7000 lm
• Flicker-free
• %50 energy saving
• Active PFC >0.9
• Impact resistant UV stabilized PC body
• H05SSF input cable
• EN60598 certified
• 3000K, 4000K, 6500K, CRI >80
• Min 50.000 on/off cycles
Applications
• Factories, warehouses, carparks
Options
• 2700K, 5700K
• 1 hr, 3 hrs emergency kit option
• Custom cable boyu, connector
• Loop-thru wiring
• DALI

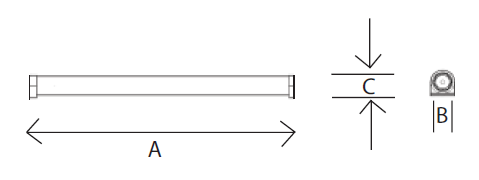

Product ID Input Voltage V Power PFC Life Hrs Operating Temp. Light Flux Dimensions
A B C Weight
2007-118 220-240V 9.0W 0.90 50.000 -30C +40C 1000LM 660 65 65 1000gr
2007-218 220-240V 14.0W 0.95 50.000 -30C +40C 1750LM 660 65 65 1000gr
2007-136 220-240V 17.0W 0.95 50.000 -30C +40C 2000LM 1270 65 65 1600gr
2007-236 220-240V 27.0W 0.95 50.000 -30C +40C 3500LM 1270 65 65 1600gr
2007-180 220-240V 40.0W 0.95 50.000 -30C +40C 5000LM 1570 65 65 2100gr
2007-258 220-240V 49.0W 0.95 50.000 -30C +40C 6000LM 1570 65 65 2200gr
2007-254 220-240V 46.0W 0.95 50.000 -30C +40C 6400LM 1570 65 65 2200gr
2007-255 220-240V 50.0W 0.95 50.000 -30C +40C 7000LM 1570 65 65 2200gr
